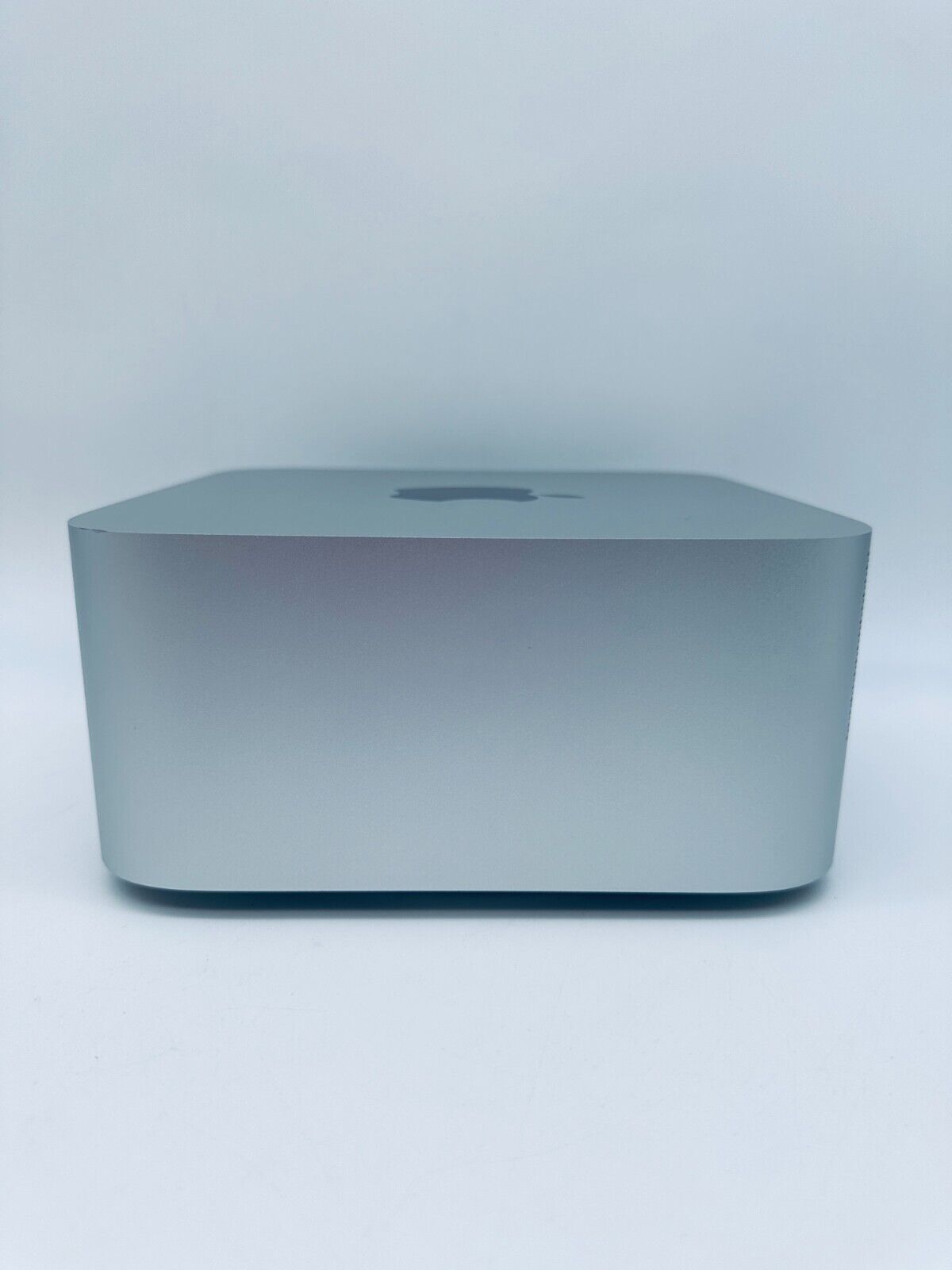

Apple Mac Studio M1 Max, 10-Core CPU 24-Core GPU 32GB RAM 512GB SSD

Grade: B+

Finish

• Silver

Chip

Apple M1 Max chip

• 10-core CPU with 8 performance cores and 2 efficiency cores
• 24-core GPU
• 16-core Neural Engine
• 400GB/s memory bandwidth
• Media engine
• Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
• Video decode engine
• Two video encode engines
• Two ProRes encode and decode engines
•


Memory

• 32GB unified memory



Storage1

• 512GB SSD



Video Support

Simultaneously supports up to five displays:

• Support for up to four Pro Display XDRs (6K resolution at 60Hz and over a billion colors) over USB-C and one 4K display (4K resolution at 60Hz and over a billion colors) over HDMI

Thunderbolt 4 digital video output supports

• Native DisplayPort output over USB‑C
• Thunderbolt 2, DVI, and VGA output supported using adapters (sold separately)

HDMI display video output

• Support for one display with up to 4K resolution at 60Hz
• DVI output using HDMI to DVI Adapter (sold separately)

Audio

• Built-in speaker
• 3.5 mm headphone jack with advanced support for high-impedance headphones
• HDMI port supports multichannel audio output

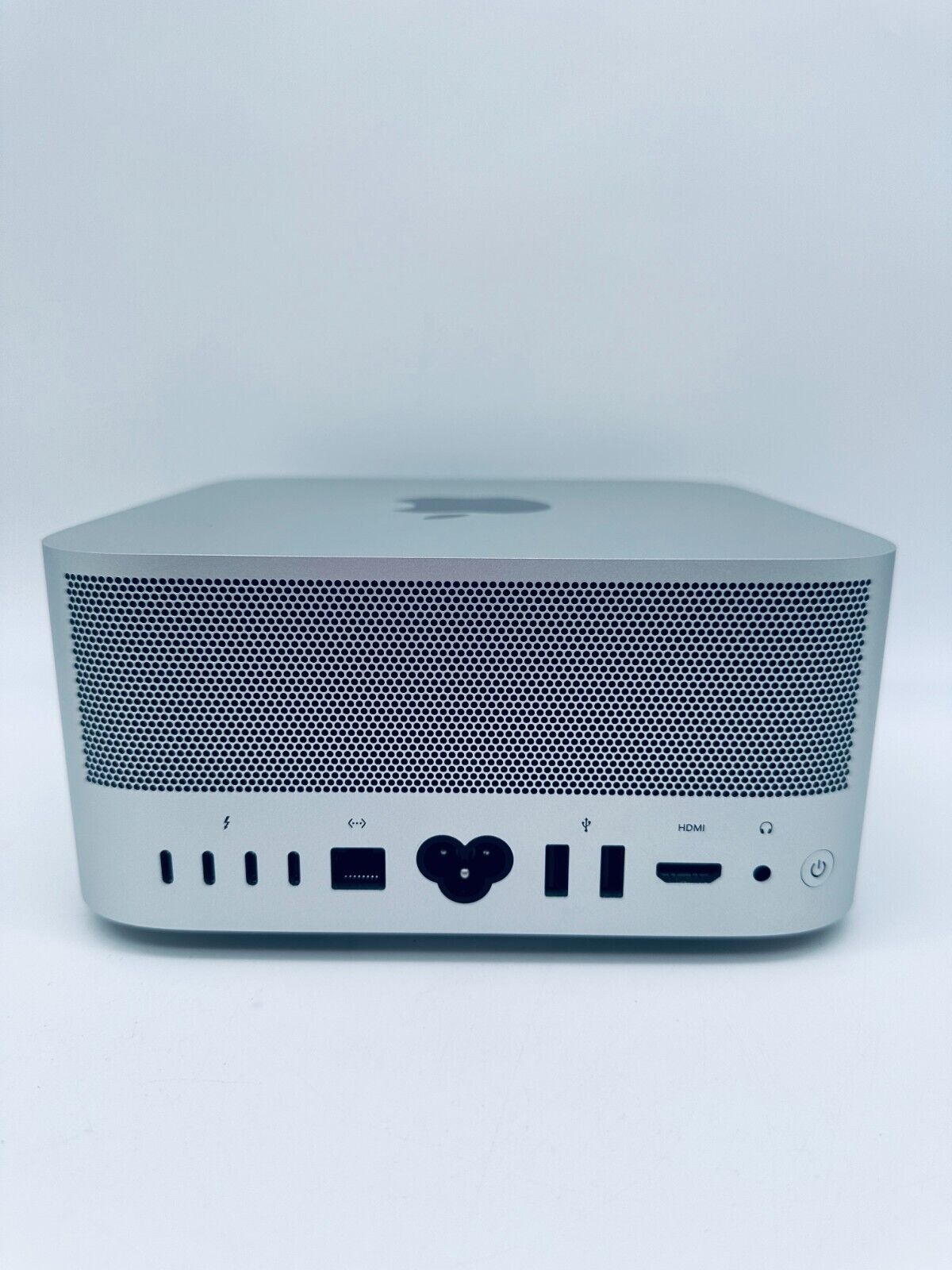

Connections and Expansion

• Four Thunderbolt 4 ports with support for:
• Thunderbolt 4 (up to 40Gb/s)
• DisplayPort
• USB 4 (up to 40Gb/s)
• USB 3.1 Gen 2 (up to 10Gb/s)
• Two USB-A ports (up to 5Gb/s)
• HDMI port
• 10Gb Ethernet
• 3.5 mm headphone jack

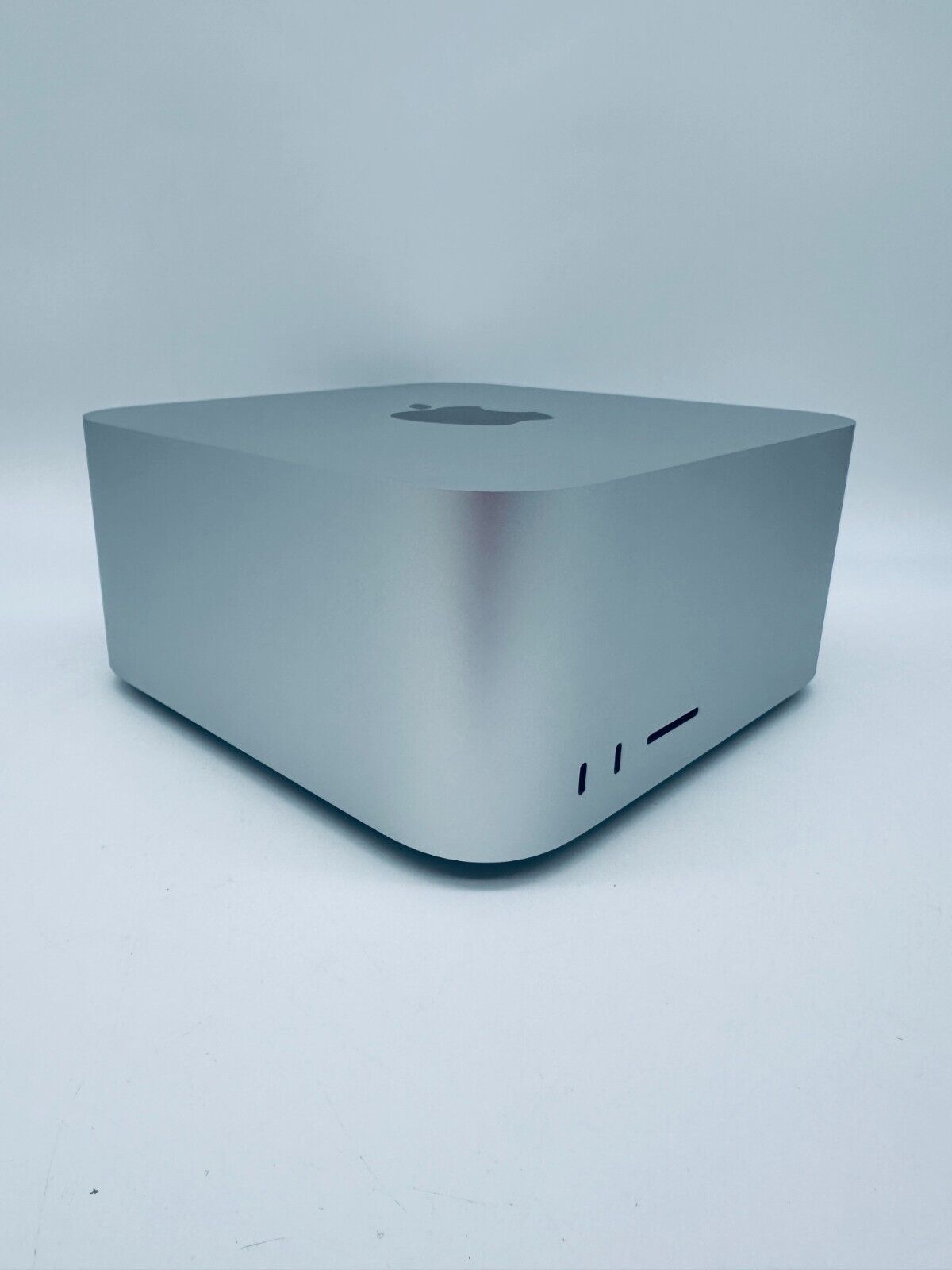

• On front (M1 Max):
• Two USB-C ports (up to 10Gb/s)
• SDXC card slot (UHS-II)
• On front (M1 Ultra):
• Two Thunderbolt 4 ports (up to 40Gb/s)
• SDXC card slot (UHS-II)

.   Communications

Wi-Fi

• 802.11ax Wi-Fi 6 wireless networking
• IEEE 802.11a/b/g/n/ac compatible

Bluetooth

• Bluetooth 5.0 wireless technology

Ethernet

• 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Size and Weight

• Height: 3.7 inches (9.5 cm)
• Width: 7.7 inches (19.7 cm)
• Depth: 7.7 inches (19.7 cm)
• Weight (M1 Max): 5.9 pounds (2.7 kg)2
• Weight (M1 Ultra): 7.9 pounds (3.6 kg)2

Electrical and Operating Requirements

• Line voltage: 100–240V AC
• Frequency: 50Hz to 60Hz, single phase
• Maximum continuous power: 370W
• Operating temperature: 50° to 95° F (10° to 35° C)
• Storage temperature: –40° to 116° F (–40° to 47° C)
• Relative humidity: 5% to 90% noncondensing
• Operating altitude: tested up to 16,400 feet (5000 meters)

In the Box

• Mac Studio
• Power cord

Operating System

macOS
